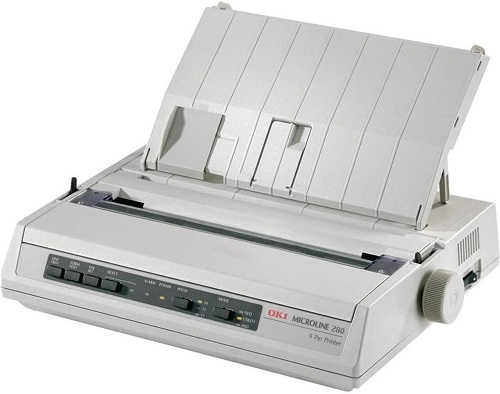

OKI Microline 280 9-Pin Dot Matrix Printer

Microline 280 Eco 9-Pin Dot Matrix Description

The Microline 280 Eco 9-Pin Dot Matrix Printer from OKI is an entry level printer that offers great printing quality. The Microline 280 Eco is highly reliable and durable, with a small footprint making it ideal for front desk operation and office applications, including data logging, label printing and so on.

Design:

The ML280eco is lightweight, portable, and durable. Its unique size makes it a perfect choice for industrial workstation applications and customer service settings. Microline 280 Eco is a true demand document printer with integrated bottom feed and short tear for easy and seamless printing.

Optimized Operation:

Featuring up to 375 characters/sec print speed and a multi-part continuous form handling (original + 3 copies), the Microline 280 Eco delivers high-quality printing output at 240 x 216 dpi, yet at a high speed.

**Note: The Microline ML280 Eco is a Monochrome (B/W) Print and uses Dot Matrix technology in printing documents.

Connectivity:

MIcroline 280 Eco 9-Pin Dot Matrix offers multiple connection options; parallel and USB 2.0, making it readily available for use in any business settings.

What’s In The Box?

• Microline ML280eco Dot Matrix Printer
• Ribbon Cartridge
• Power Cable
• CD-ROM

Microline ML280eco Specifications

• Printing Method: Serial Impact Dot Matrix Method
• Print Head: 9 Pin
• Dot Wire Diameter: 0.34 mm
• Print Direction: Bidirectional/Unidirectional printing, Short line-seeking printing
• Graphic Resolution: Max. 240(H) x 216(V) dpi

Print Speed:

• Super Speed Draft : 375 cps
• High Speed Draft : 333 cps,
• Utility : 250 cps,
• Near Letter Quality: 63 cps

• Line Feed Pitch: 4.23mm (1/6 "), 3.18mm (1/8 "), n x 0.35mm(n/72 ") (n=1-85), n x 0.18mm(n/144 ") (n=0-255), n x 0.12mm(n/216 ") (n=0-255)
• Feed Speed: 3.0 inches per second
• Feed Rate: 4.23mm (1/6”) line feed: Approx. 86 milliseconds
• Paper Route: Tractor feeder (Rear), Cut sheet feeder (Rear), Tractor feeder (Bottom), Manual (Top), Roll paper stand

Character Pitch:

• Super Speed Draft : 12.0 cpi
• High Speed Draft : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi
• Utility : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi, Proportional
• Near Letter Quality: 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi, Proportional

• Printing Width: 80 characters/line at ANK 10 cpi
• Interface: IEEE 1284-1994 Bi-directional Parallel, USB 2.0 (Full Speed)
• Emulation: OKI Microline, ESC/P emulation, IBM ProPrinter emulation
• Receive Buffer Max: 128KB
• Resident Font: High Speed Draft, Utility, NLQ Courier, NLQ Gothic, Scalable Courier, Scalable Gothic, OCR-B
• Font Style: Bold, Double Width, Double Height, Emphasized, Italics, Over score, Underline
• 1-D Barcode: UPC-A, UPC-E, EAN8, EAN13, Code39, Interleaved 2 of 5 (ITF), Code128, POSTNET
• Paper Type: Continuous paper, Continuous copying paper, Cut sheet, Card, Envelope, Label
• Paper Weight Adjustment: Manual
• Paper Weight ContinuousPaper : 52 - 75 gsm
• Single part paper: 60 - 90 gsm
• Multi part paper: 35 - 40 gsm
• Copy Capability: Normal print mode: original + 3sheets(Total Thickness < 0.36mm)
• Dimensions(WxDxH): 360 x 275 x 80 mm
• Noise Level:
  • Operating :Approx. 58 dBA
  • Quiet Mode: < 51 dBA
• MTBF(Mean Time Before Failure): 20,000 hours
• Ribbon Life
  • Black : 3 million characters
• Print Head Life: Approx. 300 million strokes/ pin
• Supported OS: Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Server 2016, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008
