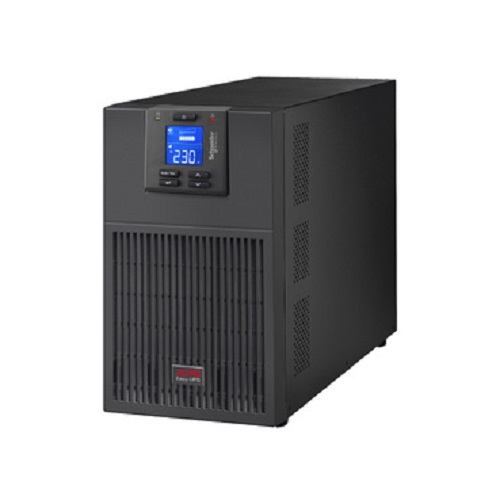

APC Easy UPS SRV 3000VA 230V With External Battery Pack (SRV3KI)

Run time for load

Min-max: 240-2400 W

W

4m 24s

Max. Capacity Used

100%

Output power capacity

2.4kWatts / 3.0kVA

Output Connections

(1) IEC 320 C19 (Battery Backup)

(1) IEC 60320 C19 (Battery Backup)

(6) IEC 60320 C13 (Battery Backup)

(6) IEC 320 C13 (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

230V

Input Connections

IEC 60320 C20

Cord Length

1.5meters

APC Easy UPS On-Line SRV 3000VA 230V

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

Includes: Basic UPS signalling RS-232 cable, CD with software, USB cable, User manual

Automatic internal bypass

Pure static bypass switch without bridging contactor securing a fast and reliable transfer to and from bypass, rated for 125% nominal load.

• Automatic restart of loads after UPS shutdown

  Automatically starts up the connected equipment upon the return of utility power.

• ECO Mode

  Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

• Input power factor correction

  Minimizes installation costs by enabling the use of smaller generators and cabling.

• Intelligent battery management

  Maximizes battery performance, life, and reliability through intelligent, precision charging.

• Intelligent Card Slot

  Customize UPS capabilities with management cards.

• LCD graphics display

  Text and mimic diagrams that display modes of operation, system parameters and alarms.

• Serial connectivity

  Provides management of the UPS via a serial port.

• USB connectivity

  Provides management of the UPS via a USB port (not available on all models).

Easy UPS On-Line Features & Benefits

Features

High efficiency

High efficiency rates that remain stable even at lower operating power levels

Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Management Software

Allows you to easily monitor your utility power and manage your UPS.

Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures an easy and intuitive monitoring.

Management Software

Double conversion on-line topology

Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Manageability

Network manageable

Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.

Serial connectivity

Provides management of the UPS via a serial port.

LCD graphics display

Text and mimic diagrams that display modes of operation, system parameters and alarms.

LED Indicators

Provide easy-to-read status of the unit and utility power conditions.

Intelligent Card Slot

Customize UPS capabilities with management cards.

Serviceability

Audible alarms

Provides notification of changing utility power and UPS power conditions

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Predictive failure notification.

Provides early-warning fault analysis ensuring proactive component replacement.

Availability

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.



Output

Max Configurable Power (Watts)

2.4kWatts / 3.0kVA

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Efficiency at Full Load

88.0 %

Output Voltage Distortion

3 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220 V, 240 V

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Internal bypass (automatic and manual)

Input

Input frequency

40 - 70 Hz Auto sensing

Input voltage range for main operations

110 - 285 Half load, 160 - 280 Full loadV

Number of Power Cords

1

Efficiency at Full Load

88.0 %

Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

4hour(s)

Nominal Battery Voltage

72 V

Expected Battery Life (years)

3 - 5

Battery Charge Power (Watts)

60 Watts

Runtime

View Runtime Graph

Efficiency

View Efficiency Graph

Communications & Management

Interface Port(s)

DB-9 RS-232, USB

Control panel

Multifunction LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

600Joules

Physical

Maximum Height

336MM, 33.6CM

Maximum Width

190MM, 19.0CM

Maximum Depth

425MM, 42.5CM

Net Weight

26.8KG

Shipping weight

29.0KG

Shipping Height

465MM, 46.5CM

Shipping Width

325MM, 32.5CM

Shipping Depth

565MM, 56.5CM

Color

Black

Environmental

Operating Temperature

0 - 40 °C

Operating Relative Humidity

0 - 95 (Non-condensing) %

Operating Elevation

0 - 3000meters

Storage Temperature

-20 - 50 °C

Storage Relative Humidity

0 - 95 (Non-condensing) %

Storage Elevation

0 - 15000meters

Audible noise at 1 meter from surface of unit

50.0dBA

Online thermal dissipation

910.0BTU/hr

Protection Class

IP20

Conformance

Approvals

CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, TISI

Standard warranty

2 years repair or replace31
