Call To Order

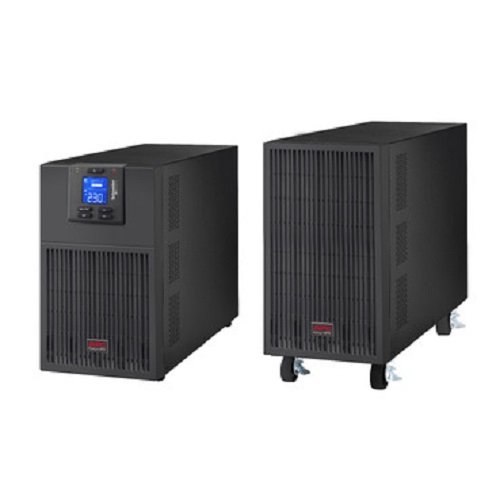

APC Easy UPS On-Line SRV Ext. Runtime 10000VA 230V with External Battery Pack SRV10KIL (CC)
NGN6,023,018.84
Availability:
In stock
Out of stock
Weight
83 kg
Product Description
Output
Max Configurable Power (Watts)
10.0kWatts / 10.0kVA
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load
94.0 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages
220, 240
Load Crest Factor
3 : 1
Topology
Double conversion online
Waveform type
Sine wave
Bypass
Internal bypass (automatic and manual)
Input
Input frequency
40 - 70 Hz
Input voltage range for main operations
110 - 300 Adjustable (half load), 176 - 300V
Efficiency at Full Load
94.0 %
Other Input Voltages
220, 240
Batteries & Runtime
Battery type
Lead-acid battery
Typical recharge time
3hour(s)
Battery Charge Power (Watts)
502Watts
Extendable Run Time
1
Battery Volt-Amp-Hour Capacity
1512
Extended Run Options
Runtime
Communications & Management
Interface Port(s)
DB-9 RS-232, Intelligent Smart Slot, USB
Control panel
Multifunction LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)
Yes
Available SmartSlot™ Interface Quantity
1
Surge Protection and Filtering
Surge energy rating
600Joules
Physical
Maximum Height
368MM, 36.8CM
Maximum Width
380MM, 38.0CM
Maximum Depth
485MM, 48.5CM
Net Weight
76.5KG
Shipping weight
82.5KG
Shipping Height
460MM, 46.0CM
Shipping Width
580MM, 58.0CM
Shipping Depth
570MM, 57.0CM
Color
Black
Environmental
Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 (Non-condensing) %
Operating Elevation
0 - 3048meters
Storage Temperature
-15 - 60 °C
Storage Elevation
0 - 15240meters
Audible noise at 1 meter from surface of unit
58.0dBA
Protection Class
IP20
