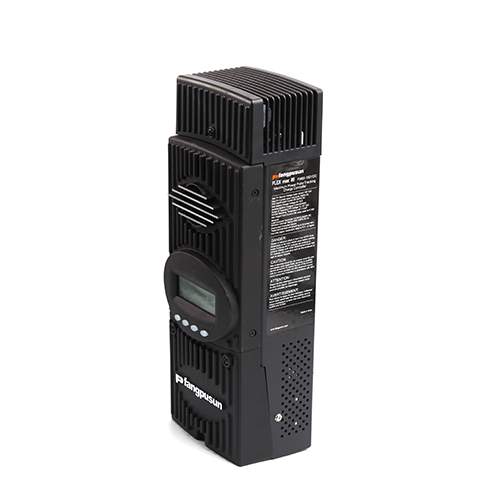

Cloud Energy Solar Charge Controller MPPT 80A Fangpusun | FLEXmax Regulator Outback 80 Amp

NGN637,584.30

Availability:

In stock

Out of stock

SKU

deluxe----1661001652

Brand

Cloud Energy

Product Description

Cloud Energy Solar Charge Controller MPPT 80A Fangpusun | FLEXmax Regulator Outback 80 Amp

Fangpusun MPPT 80A 60A FLEXmax Regulator Outback 80 Amp Solar Charge Controller

The FLEXmax MPPT family of charge controllers is the latest innovation in Maximum Power Point Tracking (MPPT) charge controllers from fangpusun. The innovative FLEXmax MPPT software algorithm is both continuous and active , increasing your photovoltaic array power yield up to 30% compared to non-MPPT controllers . Thanks to active cooling and intelligent thermal management cooling , both FLEXmax charge controllers can operate at their full maximum current rating , 60 Amps or 80 Amps respectively , in ambient temperatures as high as 104 F (40 C).

Included in all of the FLEXmax Charge Controllers are the revolutionary features first developed by fangpusun , including support for a wide range of nominal battery voltages and the ability to step-down a higher voltage solar array to recharge a lower voltage battery bank . A built-in,backlit 80 character display shows the current status and logged system performance data for the last 128 days at the touch of a button . The integrated OutBack network communications allows FLEXmax series Charge Controllers to be remotely programmed and monitored via a MATE system display and provides unrivaled completes integration .

FLEXmax MPPT Charge Controllers are the only choice when you demand a high performance , efficient and versatile charge controller for your advanced power system .

Product Parameters

	FLEXmax MPPT 60	FLEXmax MPPT 80
Nominal Battery Voltage	12 , 24 , 36 , 48 or 60 VDC
Maximum Output Current	60 amps	80 amps
Maximum Solar Array STC Nameplate	12 VDC systems 900 Watts 24 VDC systems 1800 Watts 48 VDC systems 3600 Watts 60 VDC systems 4500 Watts	12 VDC systems 1250 Watts 24 VDC systems 2500 Watts 48 VDC systems 5000 Watts 60 VDC systems 7500 Watts
NEC Recommended Solar Array STC Nameplate	12 VDC systems 750 Watts 24 VDC systems 1500 Watts 48 VDC systems 3000 Watts 60 VDC systems 3750 Watts	12 VDC systems 1000 Watts 24 VDC systems 2000 Watts 48 VDC systems 3750 Watts 60 VDC systems 5000 Watts
PV Open Circuit Voltage (VOC)	150 VDC absolute maximum coldest conditions / 145 VDC start-up and operating maximum
Standby Power Consumption	Less than 1 Watt typical
Power Conversion Efficiency	98.1 % @ 60Amp in at 48VDC System voltage - Typical	97.5 % @ 60Amp in at 48VDC System voltage - Typical
Charging Regulation	Five Stages : Bulk , Absorption , Float , Silent and Equalization
Voltage Regulation Set points	10 to 80 VDC user adjustable with password protection
Equalization Charging	Programmable Voltage Setpoint and Duration - Automatic Termination when completed
Battery Temperature Compensation	Automatic with optional RTS installed / 5.0 mV per C per 2V battery cell
Voltage Step-Down Capability	Can charge a lower voltage battery from a higher voltage PV array - Max 150 VDC input
Programmable Auxilary Control Output	12 VDC output signal which can be programmed for different control applications (Maximum of 0.2 amps DC)
Status Display	3.1" (8 cm) backlit LCD screen - 4 lines with 80 alphanumeric characters total
Remote Display and Controller	Optional Mate or Mate 2 with RS232 serial Communications Port
Network Cabeling	Proprietary network system using RJ 45 Modular Connectors with CAT 5e Cable (8 wires)
Data Logging	Last 128 days of Operation - Amp Hours , Watt Hours , Time in Float , Peak Watts , Amps , Solar Array Voltage , Max Battery Voltage Min Battery Voltage and Absorb for each day along with total Accumulated Amp Hours , and Kw Hours of production
Hydro Turbine Applications	Consult factory for approved Turbines
Positive Ground Applications	Requires two Pole Breakers for switching both positive and Negative Conductors on both Solar Array and Battery Connections (HUB-4 and HUB-10 can not be used for use in positive ground applications)
Operating Temperature Range	Minimum -40 to maximum 60 C (Power capacity of the controller is automatically derated when operated above 40 C)
Options	Remote Temperature Sensor (RTS) , HUB 4 , HUB 10 , MATE , MATE 2
Menu Languages	English & Spanish
