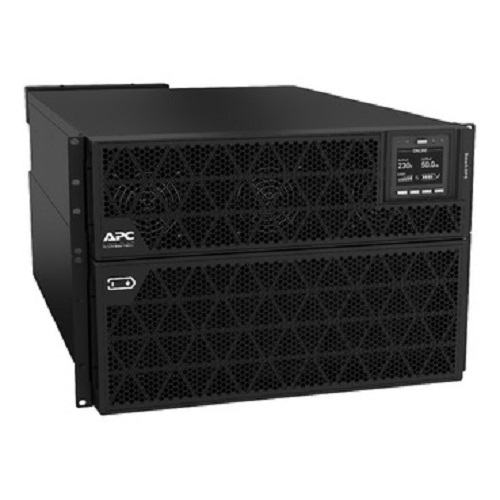

APC SRTG20KXLI Image APC APC Brand Image APC APC Brand Image APC APC Brand Image APC APC Brand Image + 5 + 5 APC Smart-UPS On-Line, 20kVA/20kW, Rack/Tower, 230V/380V...415V, Hard wire 5-wire(3P+N+E)+3-wire(1P+N+E), Network Card, W/O rail kit - SRTG20KXLI

NGN18,673,177.13

Availability:

In stock

Out of stock

SKU

deluxe----1709657316

Brand

APC

Product Description

Lead time	Usually in Stock

Main
Run time for load W information_stroke Min-max: 2000-20000 W	3min 1s
Max. Capacity Used information_stroke	100 %
Main Input Voltage	380...415 V 3 phases 230 V
Other Input Voltage	220...240 V
Main Output Voltage	380...415 V 3 phases 230 V 1 phase
Other Output Voltage	230 V
Rated power in W	20000 W
Rated power in VA	20000 VA
Output connector type	Hard wire 5 wire (3P + N + E) 1 Hard wire 3-wire (1P + N + E) 1 IEC connector 3-wire (1P + N + E) 1
Number of rack unit	7U
Provided equipment	1 x USB cable 1 x rack mounting brackets 1 x stabilization/wall mounting feet 1 x installation manual

Batteries & Runtime
Run Time	View Runtime Graph action_new_window
Efficiency	View Efficiency Graph action_new_window
Battery type	Lead-acid battery
Number of battery filled slots	0
Number of battery free slots	0
Battery recharge time	4 h
Number of battery replacement quantity	2
Battery voltage	+/- 192 V
Battery charger power	2160 W rated
Battery life	3…5 year(s)
Replacement battery	APCRBC172 action_new_window
Extended runtime	1

General
UPS type	Double conversion online
Number of power module free slots	0
Number of power module filled slots	0
Redundant	No

Physical
Colour	Black (RAL 9005)
height	30.6 cm
Width	44.0 cm
Depth	70.0 cm
Net weight	142.5 kg
Mounting location	Front
Mounting preference	Lower
Mounting mode	Rack-mounted
Two post mountable	0
USB compatible	Yes
Mounting position	Horizontal

Input
Network frequency	40...70 Hz auto-sensing
Number of input connectors	1 hard wire 5 wire (3P + N + E) 1 hard wire 3-wire (1P + N + E)
Input voltage limits	160...285 V full load 380 V 380...415 V
Maximum input current	87 A
Switching current capacity	125 A
Input harmonic distortion	Less than 5 % for full load
Input current	87 A
Load power factor	From 0.9 leading to 1 lagging

Output
Maximum configurable power in VA	20000 VA
Maximum configurable power in W	20000 W
Output frequency	50/60 Hz +/- 4 Hz sync to mains
Wave type	Sine wave
Output overload operation	60 seconds at 125% and 30 seconds at 150%
Efficiency	94 %
Harmonic distortion	Less than 5 %
Crest factor	3 : 1
Bypass type	Internal bypass (automatic and manual)
Additional information	Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage

Conformance
product certifications	CE UKCA TISI
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 60204-2

Environmental
ambient air temperature for operation	0…40 °C
Relative humidity	0…95 % non-condensing
Operating altitude	0...3000 m
Ambient air temperature for storage	-15…45 °C
Storage Relative Humidity	0…95 % non-condensing
Storage altitude	0…15000 m
Acoustic level	58 dBA
heat dissipation	3821 Btu/h
IP degree of protection	IP20

Communications & Management
Free slots	0
Preinstalled device	Network management card 3 with environmental monitoring
Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency power off	Yes

Surge Protection and Filtering
Surge energy rate	600 J
Noise suppression	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
