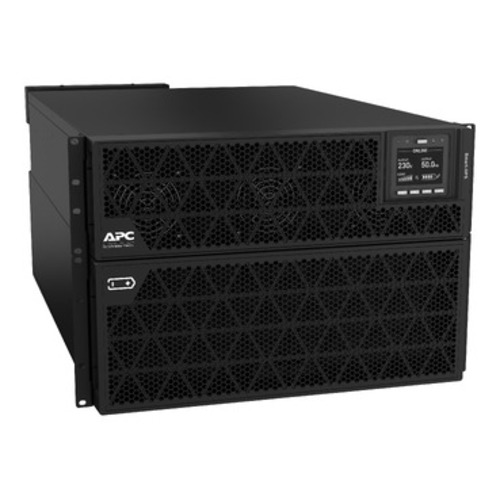

APC Smart-UPS On-Line, 15kVA/15kW, Rack/Tower, 230V/380V...415V, Hard wire 5-wire(3P+N+E)+3-wire(1P+N+E), Network Card, W/O rail kit - SRTG15KXLI
NGN14,946,154.85
Availability:
In stock
Out of stock
Weight
136 kg
Product Description
| Lead time | Usually in Stock |
|---|
|
Run time for load Winformation_stroke Min-max: 1500-15000 W |
5min 34s |
|---|---|
|
Max. Capacity Used information_stroke |
100 % |
| Main Input Voltage | 380...415 V 230 V |
| Other Input Voltage | 220...240 V |
| Main Output Voltage | 380...415 V 230 V |
| Other Output Voltage | 230 V |
| Rated power in W | 15000 W |
| Rated power in VA | 15000 VA |
| Output connector type | Hard wire 5-wire (3P + N + E) 1 Hard wire 3-wire (1P + N + E) 1 IDC connector 3-wire (1P + N + E) 1 |
| Number of rack unit | 7U |
| Provided equipment | 1 x USB cable 1 x rack mounting brackets 1 x stabilization/wall mounting feet 1 x installation manual |
| Run Time | View Runtime Graph
action_new_window |
|---|---|
| Efficiency | View Efficiency Graph
action_new_window |
| Battery type | Lead-acid battery |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 4 h |
| Number of battery replacement quantity | 2 |
| Battery voltage | +/- 192 V |
| Battery charger power | 2160 W rated |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC172
action_new_window |
| Extended runtime | 1 |
| UPS type | Double conversion online |
|---|---|
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| Colour | Black (RAL 9005) |
|---|---|
| height | 30.6 cm |
| Width | 44.0 cm |
| Depth | 70.0 cm |
| Net weight | 142.5 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| Two post mountable | 0 |
| USB compatible | Yes |
| Mounting position | Horizontal |
| Network frequency | 40...70 Hz auto-sensing |
|---|---|
| Number of input connectors | 1 hard wire 5 wire (3P + N + E) 1 hard wire 3-wire (1P + N + E) |
| Input voltage limits | 160...285 V full load 380 V |
| Maximum input current | 66 A |
| Switching current capacity | 100 A |
| Input harmonic distortion | Less than 5 % for full load |
| Input current | 66 A (1 phase) 66 A (3 phases) |
| Load power factor | From 0.9 leading to 1 lagging |
| Maximum configurable power in VA | 15000 VA |
|---|---|
| Maximum configurable power in W | 15000 W |
| Output frequency | 50/60 Hz +/- 4 Hz sync to mains |
| Wave type | Sine wave |
| Output overload operation | 60 seconds at 125% and 30 seconds at 150% |
| Efficiency | 94 % |
| Harmonic distortion | Less than 5 % |
| Crest factor | 3 : 1 |
| Bypass type | Internal bypass (automatic and manual) |
| Additional information | Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage |
| product certifications | CE UKCA TISI |
|---|---|
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 60204-2 |
| ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...3000 m |
| Ambient air temperature for storage | -15…45 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…15000 m |
| Acoustic level | 58 dBA |
| heat dissipation | 2866 Btu/h |
| IP degree of protection | IP20 |
| Free slots | 0 |
|---|---|
| Preinstalled device | Network management card 3 with environmental monitoring |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Emergency power off | Yes |
| Surge energy rate | 600 J |
|---|---|
| Noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 53.5 cm |
| Package 1 Width | 79.0 cm |
| Package 1 Length | 59.0 cm |
| Package 1 Weight | 157.2 kg |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
|---|
