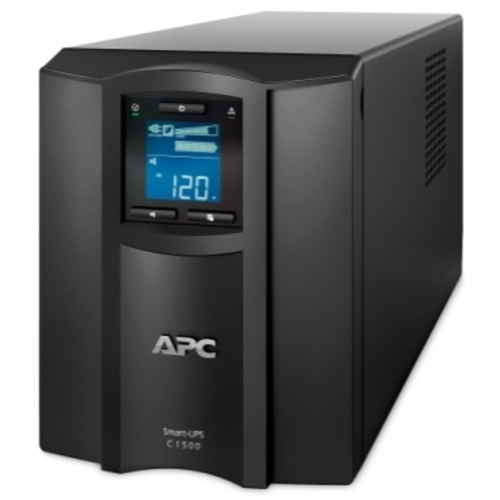

APC Smart-UPS C 1500VA LCD 230V with SmartConnect SMC1500IC
NGN1,049,615.65
Availability:
In stock
Out of stock
Weight
22.6 kg
Product Description
a
Output
Max Configurable Power (Watts)
900Watts / 1.5kVA
Output Voltage Distortion
Less than 5 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages
220, 240
Topology
Line interactive
Waveform type
Sine wave
Transfer Time
6 ms typical : 10 ms maximum
Input
Input frequency
50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations
170 - 300 Adjustable, 180 - 287V
Other Input Voltages
220, 240
Batteries & Runtime
Battery type
Lead-acid battery
Typical recharge time
3hour(s)
Replacement Battery
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Battery Charge Power (Watts)
96Watts
Battery Volt-Amp-Hour Capacity
288
Runtime
Efficiency
Communications & Management
Interface Port(s)
USB
Control panel
Multifunction LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Surge Protection and Filtering
Surge energy rating
459Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height
219MM, 21.9CM
Maximum Width
171MM, 17.1CM
Maximum Depth
439MM, 43.9CM
Net Weight
20.1KG
Shipping weight
22.64KG
Shipping Height
330MM, 33.0CM
Shipping Width
330MM, 33.0CM
Shipping Depth
590MM, 59.0CM
Color
Black
Master Carton Units
1.0
Units per Pallet
18.0
Environmental
Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0 - 3048meters
Storage Temperature
-15 - 45 °C
Storage Elevation
0 - 15240meters
Audible noise at 1 meter from surface of unit
45.0dBA
Online thermal dissipation
135.0BTU/hr
Conformance
Approvals
C-Tick, CE, GOST, UL 1778, VDE
Standard warranty
2 years repair or replace
Sustainable Offer Status
RoHS
Compliant
