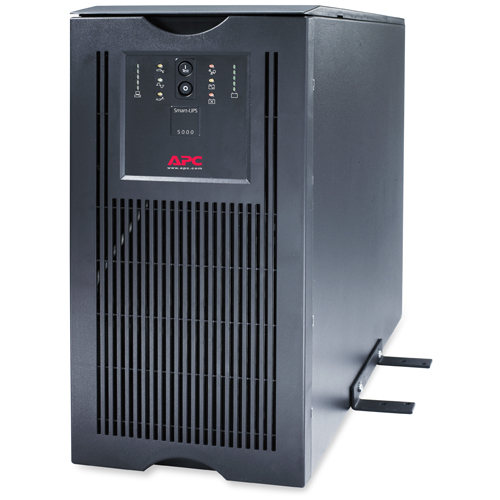

APC Smart-UPS 5000VA 230V Rackmount/Tower SUA5000RMI5U(CC)
NGN1,634,313.54
Availability:
In stock
Out of stock
Weight
106 kg
Product Description
APC Smart-UPS 5000VA 230V Rackmount/Tower
·
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
·
Audible alarms
Provides notification of changing utility power and UPS power conditions
·
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
·
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
·
Cold-start capable
Provides temporary battery power when the utility power is out.
·
Disconnected battery notification
Warns when a battery is not available to provide backup power.
·
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
·
Network manageable
Provides remote power management of the UPS over the network.
·
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
·
Resettable circuit breakers
Enables a quick recovery from overload events.
·
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
·
Serial connectivity
Provides management of the UPS via a serial port.
·
SmartSlot
Customize UPS capabilities with management cards.
·
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Smart-UPSFeatures & Benefits
Marketing Features
·
Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management
Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.
·
Save time with easy and convenient remote accessibility
Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.
·
Smarter productivity with ability to tailor to your specific application needs
Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.
·
Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
·
Avoids costly power problems by keeping your IT equipment and data safe and available
Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems
Adaptability
·
Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
·
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Availability
·
Disconnected battery notification
Warns when a battery is not available to provide backup power.
·
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
·
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
·
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
·
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
·
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
·
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Safety
·
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Manageability
·
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
·
Disconnected battery notification
Warns when a battery is not available to provide backup power.
·
Serial connectivity
Provides management of the UPS via a serial port.
·
LED status indicators
Quickly understand unit and power status with visual indicators.
·
Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
·
Network manageable
Provides remote power management of the UPS over the network.
Output
·
Output power capacity
4.0 KWatts / 5.0 kVA
·
Max Configurable Power (Watts)
4.0 KWatts / 5.0 kVA
·
Nominal Output Voltage
230V
·
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
·
Efficiency at Full Load
96.0 %
·
Output Voltage Distortion
Less than 5% at full load
·
Output Frequency (sync to mains)
47 - 53 Hz for 50 Hz nominal
·
Other Output Voltages
220, 240
·
Topology
Line Interactive
·
Waveform type
Sine wave
·
Output Connections
(4) IEC Jumpers (Battery Backup)
(2) IEC 320 C19 (Battery Backup)
(8) IEC 320 C13 (Battery Backup)
·
Transfer Time
2ms typical : 4ms maximum
Input
·
Nominal Input Voltage
230V
·
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
·
Input Connections
Hard Wire 3-wire
·
Input voltage range for main operations
160 - 286V
·
Input voltage adjustable range for mains operation
151 - 302V
·
Efficiency at Full Load
96.0 %
Batteries & Runtime
·
Battery type
VRLA
·
Typical recharge time
3hour(s)
·
Replacement Battery
·
Expected Battery Life (years)
3 - 5
·
RBC Quantity
2
·
Runtime
Communications & Management
·
Interface Port(s)
DB-9 RS-232 , SmartSlot
·
Pre-Installed SmartSlot™ Cards
·
Control panel
LED status display with On Line : On Battery : Replace Battery and Overload indicators
·
Audible Alarm
Audible and visible alarms : configurable delays
Surge Protection and Filtering
·
Surge energy rating
480Joules
·
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
·
Maximum Height
222mm , 22.2CM
·
Maximum Width
483mm , 48.3CM
·
Maximum Depth
660mm , 66.0CM
·
Rack Height
5U
·
Net Weight
97.73KG
·
Shipping weight
106.82KG
·
Shipping Height
635mm , 63.5CM
·
Shipping Width
610mm , 61.0CM
·
Shipping Depth
762mm , 76.2CM
·
Color
Black
·
Master Carton Units
1.0
·
Units per Pallet
4.0
Environmental
·
Operating Temperature
0 - 40 °C
·
Operating Relative Humidity
0 - 95 %
·
Operating Elevation
0-3000meters
·
Storage Temperature
-15 - 45 °C
·
Storage Relative Humidity
0 - 95 %
·
Storage Elevation
0-15000meters
·
Audible noise at 1 meter from surface of unit
53.0dBA
·
Online thermal dissipation
430.0BTU/hr
