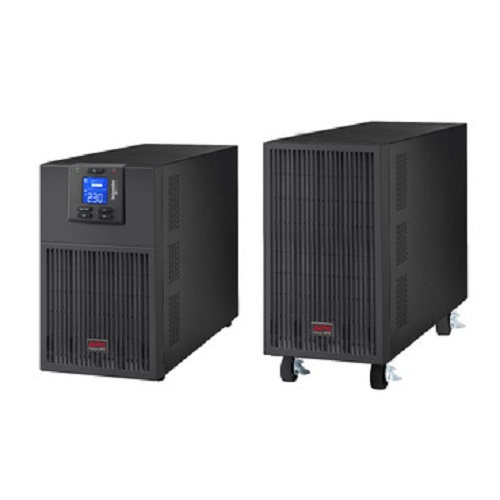

APC Easy UPS On-Line SRV Ext. Runtime 6KVA 230V with External Battery Pack SRV6KIL (CC)
NGN4,203,992.58
Availability:
In stock
Out of stock
Weight
75 kg
Product Description
Output
Max Configurable Power (Watts)
1.6kWatts / 2.0kVA
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load
88.0 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages
220, 240
Load Crest Factor
3 : 1
Topology
Double conversion online
Waveform type
Sine wave
Bypass
Internal bypass (automatic and manual)
Input
Input frequency
40 - 70 Hz
Input voltage range for main operations
110 - 285 Adjustable (half load), 160 - 280V
Number of Power Cords
1
Efficiency at Full Load
88.0 %
Other Input Voltages
220, 240
Batteries & Runtime
Battery type
Lead-acid battery
Typical recharge time
4hour(s)
Battery Charge Power (Watts)
242Watts
Extendable Run Time
1
Battery Volt-Amp-Hour Capacity
972
Extended Run Options
Runtime
Efficiency
Communications & Management
Interface Port(s)
DB-9 RS-232, USB
Control panel
Multifunction LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Available SmartSlot™ Interface Quantity
1
Surge Protection and Filtering
Surge energy rating
600Joules
Physical
Maximum Height
336MM, 33.6CM
Maximum Width
335MM, 33.5CM
Maximum Depth
425MM, 42.5CM
Net Weight
45.4KG
Shipping weight
49.3KG
Shipping Height
465MM, 46.5CM
Shipping Width
560MM, 56.0CM
Shipping Depth
565MM, 56.5CM
Color
Black
Environmental
Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 (Non-condensing) %
Operating Elevation
0 - 3048meters
Storage Temperature
-20 - 50 °C
Storage Elevation
0 - 15240meters
Audible noise at 1 meter from surface of unit
50.0dBA
Protection Class
IP20
Conformance
Approvals
CE, IEC 62040-1-1, IEC 62040-1-2
