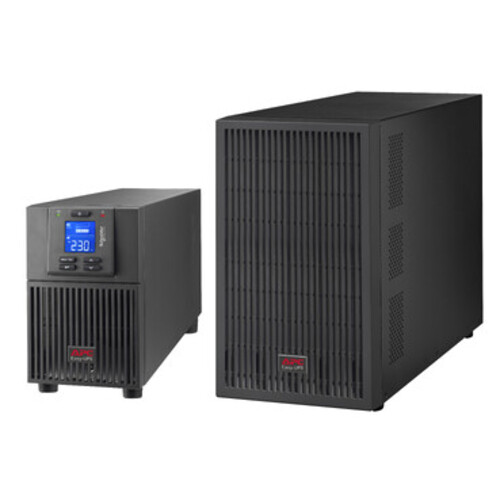

APC Easy UPS On-Line Ext. Runtime SRV 3000VA 230V With External Battery Pack|SRV3KIL (CC)

Run time for load



W

12m

Max. Capacity Used

100%

Output power capacity

2.4kWatts / 3.0kVA

Output Connections

(1) IEC 320 C19 (Battery Backup)

(6) IEC 320 C13 (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

230V

Input Connections

IEC-320 C14

Cord Length

1.52meters

APC Easy UPS On-Line Ext. Runtime SRV 3000VA 230V with External Battery Pack

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions

Includes: Basic UPS signalling RS-232 cable, CD with software, Country-specific detachable power cord, Qty 1 - DC Cable, USB cable, User Manual

RoHS

Automatic internal bypass



Supplies utility power to the connected loads in the event of a UPS power overload or fault.

Automatic restart of loads after UPS shutdown



Automatically starts up the connected equipment upon the return of utility power.

ECO Mode



Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

Input power factor correction



Minimizes installation costs by enabling the use of smaller generators and cabling.

Intelligent battery management



Maximizes battery performance, life, and reliability through intelligent, precision charging.

Intelligent SmartSlot



Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.

LCD graphics display



Text and mimic diagrams that display modes of operation, system parameters and alarms.

Serial connectivity



Provides management of the UPS via a serial port.

USB connectivity



Provides management of the UPS via a USB port (not available on all models).

Easy UPS On-Line Features & Benefits

Manageability

Serial connectivity

Provides management of the UPS via a serial port.

SmartSlot

Customize UPS capabilities with management cards.

LCD graphics display

Text and mimic diagrams that display modes of operation, system parameters and alarms.

LED Indicators

Provide easy-to-read status of the unit and utility power conditions.

Network manageable

Provides remote power management of the UPS over the network.

Serviceability

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Predictive failure notification.

Provides early-warning fault analysis ensuring proactive component replacement.

Audible alarms

Provides notification of changing utility power and UPS power conditions

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Features

Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures an easy and intuitive monitoring.

Management Software

Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Input Power Factor Correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

Management Software

Allows you to easily monitor your utility power and manage your UPS.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

Double conversion on-line topology

Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.

High efficiency

High efficiency rates that remain stable even at lower operating power levels

Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

Availability

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Product Distribution

United Arab Emirates, Afghanistan, Albania, Armenia, Netherlands Antilles, Angola, Austria, Azerbaijan, Bosnia and Herzegovina, Belgium, Burkina Faso, Bulgaria, Burundi, Benin, Botswana, Belarus, The Democratic Republic Of Congo, Switzerland, Chile, Cameroon, Colombia, Cyprus, Czech Republic, Germany, Djibouti, Denmark, Dominica, Algeria, Estonia, Egypt, Eritrea, Spain, Ethiopia, Finland, France, Gabon, United Kingdom, Georgia, French Guiana, Gambia, Guadeloupe, Greece, Hong Kong, Croatia, Hungary, Indonesia, Ireland, Israel, Iraq, Iceland, Italy, Jordan, Kenya, Cambodia, South Korea, Kazakhstan, Lebanon, Saint Lucia, Liberia, Lithuania, Luxembourg, Latvia, Morocco, Madagascar, Macedonia, Myanmar, Mongolia, Martinique, Mauritania, Malta, Mauritius, Malawi, Malaysia, Namibia, Netherlands, Norway, Peru, Philippines, Pakistan, Poland, Portugal, Romania, Russia, Rwanda, Sweden, Singapore, Slovenia, Slovakia, Sierra Leone, Senegal, Somalia, Togo, Thailand, Tajikistan, Turkmenistan, Tunisia, Turkey, Tanzania, Ukraine, Uganda, Uruguay, Uzbekistan, Vietnam, XF, South Africa, Zambia, Zimbabwe

Technical Specifications

Print

Download



Output

Max Configurable Power (Watts)

2.4kWatts / 3.0kVA

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Efficiency at Full Load

88.0 %

Output Frequency (sync to mains)

50/60Hz +/- 3 Hz

Other Output Voltages

220, 240

Load Crest Factor

3 : 1

Topology

Double Conversion Online

Waveform type

Sine wave

Transfer Time

4ms typical

Bypass

Internal Bypass (Automatic and Manual)

Input

Input frequency

40 - 70 Hz

Input voltage range for main operations

160 - 280V

Input voltage adjustable range for mains operation

100 - 280 (half load)V

Number of Power Cords

1

Efficiency at Full Load

88.0 %

Other Input Voltages

220, 240

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

4hour(s)

Battery Charge Power (Watts)

234Watts

Extendable Run Time

1

Battery Volt-Amp-Hour Capacity

939

Extended Run Options

APC-Easy-UPS-On-Line-Ext-Runtime-SRV-3000VA-230V-with-External-Battery-Pack

Runtime

View Runtime Graph

View Runtime Chart

Efficiency

View Efficiency Graph

Communications & Management

Interface Port(s)

DB-9 RS-232, USB

Control panel

Multi-function LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO)

--

Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

600Joules

Physical

Maximum Height

336MM, 33.6CM

Maximum Width

425MM, 42.5CM

Maximum Depth

425MM, 42.5CM

Net Weight

45.9KG

Shipping weight

49.8KG

Shipping Height

465MM, 46.5CM

Shipping Width

565MM, 56.5CM

Shipping Depth

565MM, 56.5CM

Color

Black

Environmental

Operating Temperature

0 - 40 °C

Operating Relative Humidity

0 - 95 (non-condensing) %

Operating Elevation

0-3000meters

Storage Temperature

-20 - 50 °C

Storage Relative Humidity

0 - 95 (non-condensing) %

Storage Elevation

0-15000meters

Audible noise at 1 meter from surface of unit

50.0dBA

Protection Class

IP 20
