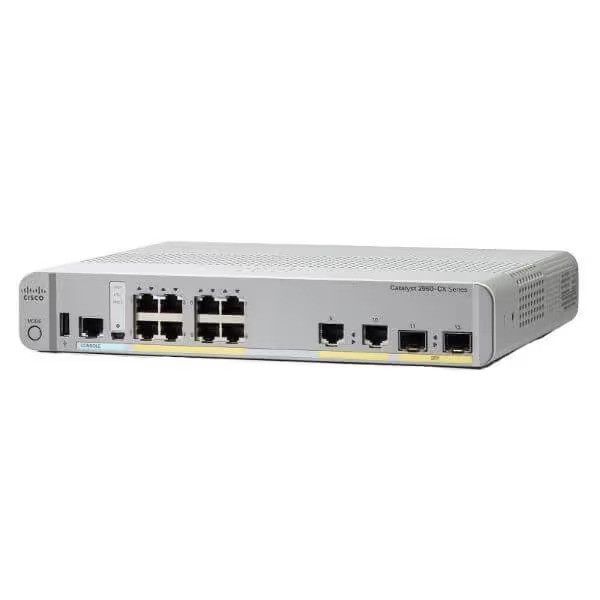

Cisco Catalyst 2960-CX 8 Port PoE, LAN Base(DT)

The Cisco^® Catalyst^® Compact Switches easily expand your Ethernet and Multigigabit Ethernet Cisco Catalyst switching infrastructure outside the wiring closet to enable new workspaces, extend wireless LANs, and connect PoE devices. These fanless, small form-factor switches are ideal for space-constrained deployments where multiple cable runs would be challenging. With speeds that reach 10Gbps, the Cisco Catalyst 3560CX Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.

Product Overview

The Cisco Catalyst 3560-CX and 2960-CX Series Compact Switches help optimize network deployments. These Gigabit Ethernet (GbE) and Multigigabit Ethernet (mGig) managed switches are ideal for high-speed data connectivity, Wi-Fi backhaul, and Power over Ethernet (PoE+) connectivity in places where space is at a premium. With a single copper or fiber cable from the wiring closet, Cisco Catalyst compact switches enable IP connectivity for devices such as IP phones, wireless access points, surveillance cameras, PCs, and video endpoints.

With their quiet, fanless design and compact footprint, these switches offer flexible mounting options and open up
a variety of network design and connectivity options. Use them in offices, classrooms, hotels, retail stores, and other enterprise and branch locations. The setup allows for shorter cable runs from the compact switches, allowing for flexibility in space redesign and growth as new devices join the network - this eliminating the need for expensive and inflexible cabling infrastructure.

Cisco Catalyst 3560-CX and 2960-CX Series Compact Switch Highlights

●   8 or 12 Gigabit Ethernet ports with line rate forwarding performance

●   6 Gigabit Ethernet plus 2 Multigigabit Ethernet (100 Mbps/1/2.5/5/10 Gbps) ports with line rate forwarding performance (selected model)

●   Gigabit and Multigigabit (100 Mbps/1/2.5/5/10 Gbps) copper, small form-factor pluggable (SFP) or
10G SFP+ uplinks

●   Power over Ethernet Plus (PoE+) support with up to 240W of PoE budget

●   Power over Ethernet (PoE) pass-through enables the compact switch to draw Cisco Universal PoE
(Cisco UPOE^™) power from the wiring closet and pass it to end devices (selected model) with the additional option to be powered by auxiliary AC-DC or DC-DC power adapter

●   Cisco Instant Access mode to enable single point of management and simplify operation (selected models)

●   Advanced Layer 2 (LAN Base) and Layer 3 (IP Base) support with an option to upgrade to IP services

●   Fanless design and silent operation

●   Enhanced Limited Lifetime Warranty (E-LLW)

Miscellaneous
Certifications & Standards: IEEE Standards:
802.1D Spanning Tree Protocol
802.1p CoS Prioritization
802.1Q VLAN
802.1s
802.1w
802.1x
802.1AB (LLDP)
802.3ad
802.3af
802.3ah(100BASE-X single/multimode fiber only)
802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
802.3 10BASE-T specification
802.3u 100BASE-TX specification
802.3ab 1000BASE-T specification
802.3z 1000BASE-X specification
Safety:
UL 60950-1
CAN/CSA 22.2 No. 60950-1
EN 60950-1
IEC 60950-1
CE Marking
GB 4943
IEC 60825
Electromagnetic emissions certifications:
FCC Part 15, CFR 47, Class A, North America
EN 55022 (CISPR22) and EN 55024 (CISPR24), CE marking, European Union
AS/NZS, Class A, CISPR22:2004 or EN55022, Australia and New Zealand
VCCI Class A, V-3/2007.04, Japan
KCC (Formerly MIC, GB17625.1-1998) Class A, KN24/KN22, Korea
ANATEL, Brazil
CCC, China
GOST, Russia
Form Factor: Desktop
Rack-mountable
Rail-mountable
Green Compliance Certificate/Authority: RoHS-6
Green Compliant: Yes
Network & Communication
Ethernet Technology: Gigabit Ethernet
Layer Supported: 3
Network Technology: 10/100/1000Base-T
1000Base-X
Network
Network Technology: 10/100/1000Base-T
1000Base-X
Physical Characteristics
Depth: 213.4 mm
Form Factor: Rack-mountable
Height: 44.5 mm
Weight (Approximate): 1.72 kg
Width: 269.2 mm
Power Description
Input Voltage: 120 V AC
PoE (RJ-45) Port: No
Power Source: Power Supply
Product Information
Form Factor: Desktop
Rack-mountable
Rail-mountable
Power Source: Power Supply
Width: 269.2 mm
Reliability
MTBF: 756260 Hour
Storage
Flash Memory: 128 MB
Technical Information
Ethernet Technology: Gigabit Ethernet
Management:
DHCP
RMON
VLAN
SNMP v1, 2c, 3
Telnet
CLI
QoS
Media Type Supported: Optical Fiber
Twisted Pair
Memory Technology: DRAM
Modular: No
Number of Network (RJ-45) Ports: 8
Power Source: Power Supply
USB: No
