Logitech Rally UHD 4K Conference Camera System with Speaker and Mic Pod Set

Logitech Rally Video Conferencing Solution Description

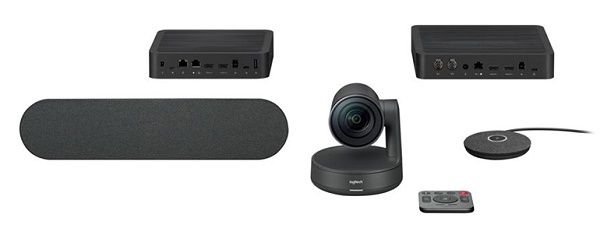

The Logitech Rally UHD 4K Conference Camera System with Speaker and Mic Pod Set from Logitech delivers up to UHD 4K30 resolution for lifelike HD video calls to create the experience of sitting together in the same room. The set includes the Rally camera, a speaker, a Display Hub, a Mic Pod, a remote control, and multiple cables to connect and power all the components. The Rally delivers professional HD video with sharp image resolution, enhanced colour reproduction with its wide dynamic range, and a 15x HD zoom.

The Rally cameras'  improved autofocus and pan/tilt/zoom capabilities allow seamless transitions between the three preset locations. The camera's 90-degree field of view makes it ideal for small to medium-sized meeting rooms with up to ten seats and other professional settings requiring clear, high-resolution video.

Most cloud-based, USB-ready video conferencing applications, including Skype, Cisco, Zoom, BroadSoft, GoToMeeting, Vidyo, and others, are compatible with the Rally. The camera system is controlled by an RF remote control and is compatible with Mac, Windows, or Chrome systems via the included USB 3.0 Type-C cable. A mounting bracket with hardware is also included with the camera. The camera can be installed in any position and automatically flip an inverted image to the correct orientation.

At Paykobo.com, we offer payment on delivery and installment payment options to corporate customers. Customers can walk into our experience center at our Lagos office for inspection or demo before purchase. In addition, we have standby IT specialists to help you understand your needs.

We prioritize fast delivery as customers can expect to have their products at their doorstep within 4 hours in Lagos and 24 hours outside Lagos.

Are you a business owner, procurement manager, IT Specialist, or administrative manager? Paykobo.com has divergent options to suit your specific needs.

Video Quality:

The Logitech Rally Video Conferencing Solution offers up to 4k resolution at 30fps, perfect for Ultra HD recording and streaming. The Logitech Rally offers a razor-sharp 15x HD zoom with whisper-quiet mechanical Pan/Tilt/Zoom that captures every participant in your meeting room.

Light and Colour Optimization:

Logitech Rally Video Conference Solution features a RightSense suite (RightLight, RightSound, and Rightsight) of proactive technologies with a Wide Dynamic Range (WDR). With these features, the Rally Camera prioritizes faces over surfaces and objects to render natural-looking skin tones, fine-tunes colour, and optimize light balance.

Automatic Camera Control:

Logitech Rally Video Conferencing Solution RightSight technology controls the camera's automatic movement and lens adjustment to fit every participant in your meeting room in a single view.

Multiple Installation Options:

The Rally Camera featured in the conferencing solution gives you different mounting options. You can mount the Rally Camera on a table; mounting can also be done on a wall with the mounting hardware or by attaching a VESA-compatible display with an optional Rally Mounting Kit. The Logitech Rally Camera automatically corrects its image orientation and camera controls when it is inverted for ceiling installation.

Simple Plug and Play:

With the ease of Plug and Play, the Logitech Rally Conferencing Solution got all your meetings covered. Simply connect the Solution to a power source and a PC, Mac, and Chrome device via USB. You can connect your Rally Camera virtually to any video conferencing, recording, and broadcasting application that supports USB cameras.

What's In The Box?

• Rally Camera
• Rally Display Hub
• Rally Table Hub
• Rally Speaker (x1)
• Rally Mic Pod (x1)
• Remote control
• USB Type C to USB Type C
• USB Type A to USB Type B
• CAT6A Ethernet cable
• HDMI Type A (x2)
• A/C cables (x2)
• Power Supplies (x2)
• Documentation

Logitech Rally Video Conferencing Solution Specifications:

Dimensions

• Rally Camera (H*W*D): 182.5*152*152 mm
• Rally Speaker (H*W*D): 103*449*80 mm
• Rally Mic Pod (H*W*D): 21*102*102 mm
• Rally Display Hub (H*W*D): 40*206*179 mm
• Rally Table Hub (H*W*D): 40*176*138 mm

Rally Camera

• Zoom: 15x HD zoom (5x optical + 3x digital)
• Pan: 180° (±90°)
• Tilt: 140° (+50° / -90°)
• Field of View
  • Diagonal: 90°
  • Horizontal: 82°
  • Vertical: 52°
• Total Room Coverage: 262° wide x 192° tall (field of view + pan and tilt)
• Resolutions @ 30fps: 4K Ultra HD, 1440p, 1080p, 900p, 720p, and SD
• Resolutions @ 60fps: 1080p, 720p
• RightLight™ Technologies: Wide Dynamic Range (WDR), low-light compensation, video noise reduction, low-light saturation optimization
• Privacy: Lens parks at -90° in sleep mode for assured privacy

Rally Mic Pod

• Pickup Range: 4.5 m diameter
• Four omnidirectional microphones forming eight acoustic beams
• AEC: Acoustic Echo Cancellation
• VAD: Voice Activity Detector
• Background noise suppression
• Mute button with LED status indicator
• Captive 2.95 m 12-pin cable
• Daisy chain up to 7 Rally Mic Pods
• Frequency response: 90Hz – 16kHz
• Sensitivity: >-27 dB +/-1dB @ 1Pa
• Microphone data rate: 48 kHz
• Recommended number of participants
  • Rally (one Mic Pod): 16
  • Rally Plus (two Mic Pods): 16
• Additional participants per Mic Pod: 6
• Recommended participants for Rally with 7 Mic Pods: 46

Rally Speaker

• High-performance 76 mm driver with rare-earth magnet
• Patent-pending suspension system eliminates vibration-induced camera shake and audio interference
• Mini XLR cable connects to Rally Display Hub for both signal and power
• Sampling rate: 48 kHz
• Speaker volume 95dB SPL @1W, 100dB SPL @7.5W, both +/-2dB at ½ meter
• Sensitivity: 95+/-2 dB SPL at ½ meter
• Distortion: 200Hz–300Hz <2.5%, 300 Hz–10kHz < 1%@7.5W

Rally Table Hub

• Single CAT6A cable connection to Rally Display Hub 5 m cable included, supports customer-supplied cables up to 50 m
• Hub 5m cable included, supports customer-supplied cables up to 50m
• Active speaker detection: analyzes audio from up to 7 Mic Pods and 56 beams every 8 ms
• 12 Rally Mic Pod Pin connector
• HDMI Type A passthrough to Display Hub (x2)
• USB Type A (reserved for future capability)
• USB Type C
• USB Type B (connects to meeting room computer)
• Power input
• RJ45 (reserved for future capability)

Rally Display Hub

• HDMI Type A: (x2) (connects to displays)
• USB Type B (connects to meeting room computer)
• USB C (connects to Rally Camera)
• Mini XLR: x2
• RJ45: connects to Table Hub
• Powers one or two Rally Speakers
• Power input

Remote Control

• RF remote control (line of sight not required)
• CR2032 batteries (included)

Cables / Power

• Camera to Display Hub
  • 2 m USB 3.1 Type C to USB Type C 3.1
• Conference Room Computer to Display or Table Hub
  • 2 m USB 3.1 Type A to USB Type B
• Display Hub to Table Hub
  • 5 m CAT6A Ethernet cable (supports customer-supplied cables up to 50 m
• Display Hub to Speaker (x2)
  • 2.95 m Mini XLR (supports customer-supplied extension cables up to 3 m
• Conference Room Computer to Displays (x2)
  • 2 m HDMI A
• Mic Pod
  • 2.95 m: Hardwired with 12 pin connector
• Power Outlets to Power Supplies (x2): 1 m
• Power Supplies to Table Hub / Display Hub (x2): 1.5 m

Rightsense Technologies

• RightLight with WDR
  • Video noise reduction
  • Low-light saturation optimization
  • Low-light compensation
  • Reduces backlighting and glare without darkening the entire image
  • Renders natural skin tones for each participant on camera
• RightSight
  • Human figure detection
  • Auto-frame participants on-demand
  • Auto-frame participants at meeting start
  • Auto-reframe participants during meetings
• RightSound
  • Machine learning AI trained to distinguish human speech from other sounds
  • AEC (Acoustic Echo Cancellation)
  • VAD (Voice Activity Detector)
  • Auto-level loud and soft voices
  • Background noise suppression
• RightSound Mic Matrix
  • Very low distortion broadside beamforming algorithm steers the factory-paired microphones directly at the talker for the best voice pickup and noise reduction
  • Supports up to 56 acoustic beams (8 per Rally Mic Pod) to lock onto the active talker
  • Beam focus refresh rate: 8ms (125 times/second)
  • Anti-Vibration Suspension: This improves the echo cancelling performance of Rally Mic Pods, while ensuring that video images remain clear and steady, even at high volume levels and when zoomed in. A patent-pending suspension system decouples the speaker module within the external enclosure, virtually eliminating the vibrations that can travel through walls, stands, and tables.
  • Peak-limiting algorithm eliminates even momentary speaker clipping to prevent distortion

Operating Systems

• Windows 7, 8.1 or Windows 10
• Chrome OS™
• macOS: 10.10 or higher
• Windows 8.1 or higher or macOS 10.10 or higher
• Resolutions higher than 1080p
• USB 3.0 port
• Compatible software

Certifications

• Certified for Skype for Business and ready for Teams
• Certified for Google Hangouts Meet Hardware
• Microsoft Cortana® certified
• Zoom Certified
• Cisco Jabber® and WebEx compatible
• Compatible with BlueJeans, GoToMeeting, BroadSoft, Video, other video conferencing software, recording, and broadcasting applications that support USB cameras

Compatibility

• Plug-and-play USB connectivity
• Supports compatible video conferencing software in appliance mode when deployed with Logitech RoomMate, including Zoom Rooms Appliances. Certification pending for Microsoft Teams Rooms on Android and other video conferencing platforms.
• Appliance mode
