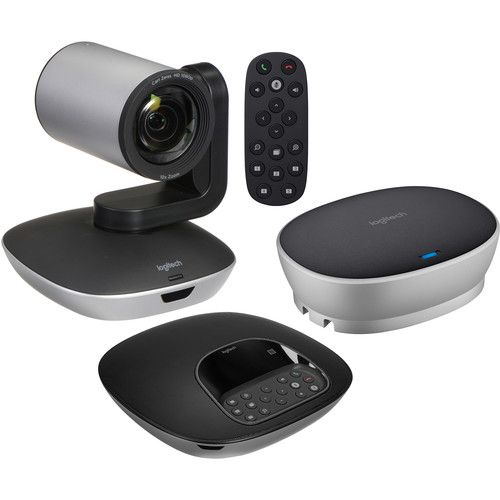

Logitech GROUP HD Video and Audio Conferencing System for Big Meeting Rooms

Logitech GROUP Video Conference System Description

Looking for a simple solution for your mid to large-sized meeting rooms? Logitech Group delivers an all-in-one video conferencing system for the modern meeting space. With a wide 120-degree field of view, everyone fits in from huddle rooms to large conference spaces. Everything is automated and easy to use. Logitech Group works seamlessly with the most popular business applications, including Microsoft Lync/Skype for Business, Microsoft Teams, WebEx®, Google Hangouts™ and more.

Crystal-clear video and a beautifully designed full-duplex speakerphone deliver an outstanding collaboration experience that is so good, everyone can see and hear each other. To begin a meeting, simply connect a laptop or use the advanced speakerphhone with a Bluetooth® wireless technology-enabled mobile device for clear audio calls.

Sized for medium to large rooms, the Logitech GROUP Video Conferencing System provides a powerful, affordable way for businesses to have a video meeting with people whether they are down the hall or on another continent. This is the first system built for rooms that seats up to twenty people, making it ideal for offices, remote workers, schools and universities.

Group's USB plug-and-play connectivity makes it simple to deploy and use. It even works within your existing computing environment with any video conferencing software application, including those you already use.

High Definition Video:

The Logitech Group offers a camera that brings meeting into focus with a premium lens, 10x lossless zoom, and up HD (1080p @ 30fps) performance. The GROUP camera is designed to pan, tilt and zoom smoothly with the aid of a remote or console which perfectly frames the presenter and whiteboard for detail and clarity. It offers a 90-degree diagonal field of view ideal to cover medium and large conference rooms.

Audio Quality:

The GROUP comes with a full-duplex speakerphone, which provides crystal clear sound. Acoustic echo cancellation and noise reduction technology makes conversations natural-sounding. The speakerphone also features Bluetooth, NFC wireless technology, an LCD for caller ID, call duration, and other functions.

Versatile Mounting Options:

The GROUP gives you multiple mounting options. Mounting of the camera can be done on the table, tripod, or wall. All the Group components are connected to the hub which is connected to a laptop or computer via a single USB 2.0. The hub simplifies cabling and makes it easy to run cables under tables and through conduits.

Plug and Play Simplicity:

Using the Logitech GROUP is seamless and easy with its USB plug-and-play connectivity. Simply connect Logitech Group, the conference room computer or PC through USB and it is compatible and certified with most conferencing software.

What’s In The Box?

• Camera
• Speakerphones
• Handheld remote control
• Two 5m cables for connection between speakerphone and camera to hub
• One 2m cable between hud and PC
• Velcro for management
• Velcro for hub to table securing
• Logitech Group Hub
• Power adapter with regional plug (3m)
• Mount
• Documentation

Logitech GROUP Specifications:

Product Dimensions:

•  Camera (H x W x D): 130 x 170 x 138 mm
• Weight: 585g
• Speakerphone (H x W x D): 240 x 65 x 240 mm
• Weight: 1223g
• Hub (H x W x D): 94 x 34 x 74 mm
• Weight: 83g
• Remote (H x W x D): 50 x 120 12 mm
• Weight: 51g
• Wall/Table Mount (H x W x D): 210 x 120 x 99 mm
• Weight: 255g
• System Requirements: Windows 7, 8.1 or 10, macOS 10.10 or later

Technical Specs:

• Camera:
• Smooth motorized pan, tilt, and zoom controlled from remote or console
• Pan: +/- 90 degree
• Tilt: +35 degree/ -45 degree
• 10x lossless HD zoom
• Field of view:
  • Diagonal: 90 degree
  • Horizontal: 82.1 degree
  • Vertical: 52.2 degrees
• Full HD 1080p @ 30fps
• H.264 UVC 1.5 with scalable video coding (SVC)
• Autofocus
• 5 camera presets
• Far-end control (PTZ) of conferencecam product
• Kensington security slot
• Standard tripod thread
• Video mute/unmute LED indicator
• Remote control:
  • Camera, speakerphone, and call control
  • 5 camera presets
  • Docks on speakerphone
  • IR 8.5m range
  • CR2032 battery (included)

• Speakerphone:
  • Full-duplex performance
  • Acoustic echo cancellation
  • Noise reduction technology
  • Pairs with mobile devices via Bluetooth and NFC
  • Tactile buttons for call answer/end, volume and mute, Bluetooth, and camera controls
  • LCD for caller ID, call duration, and other functional response
  • Ultra-wideband audio
  • LEDs for speakerphone streaming, mute, hold, and Bluetooth
  • 5 camera presets for pan, tilt, and zoom settings
  • Kensington security slot
• Microphones:
  • Pickup range: 6m
  • Pickup range with expansion mics: 8.5m
  • Optional expansion mics
  • Four omnidirectional, beamforming microphones
  • Frequency response: 100Hz-11KHz
  • Sensitivity: -28 dB +/-3dB
  • Distortion: <5% from 200Hz
• Mount: dual-purpose bracket works for both wall mounting and tabletop elevation
• Compatibility and certifications:
  • Certified for Skype for Business and ready for Teams
  • Zoom certified
  • Microsoft Cortana
  • Plug and play USB connectivity
  • Fuze certified
  • Cisco Jabber
  • Compatible with BlueJean, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras.
